Indirect Fired Units – Convoluted Tube

Request a quote

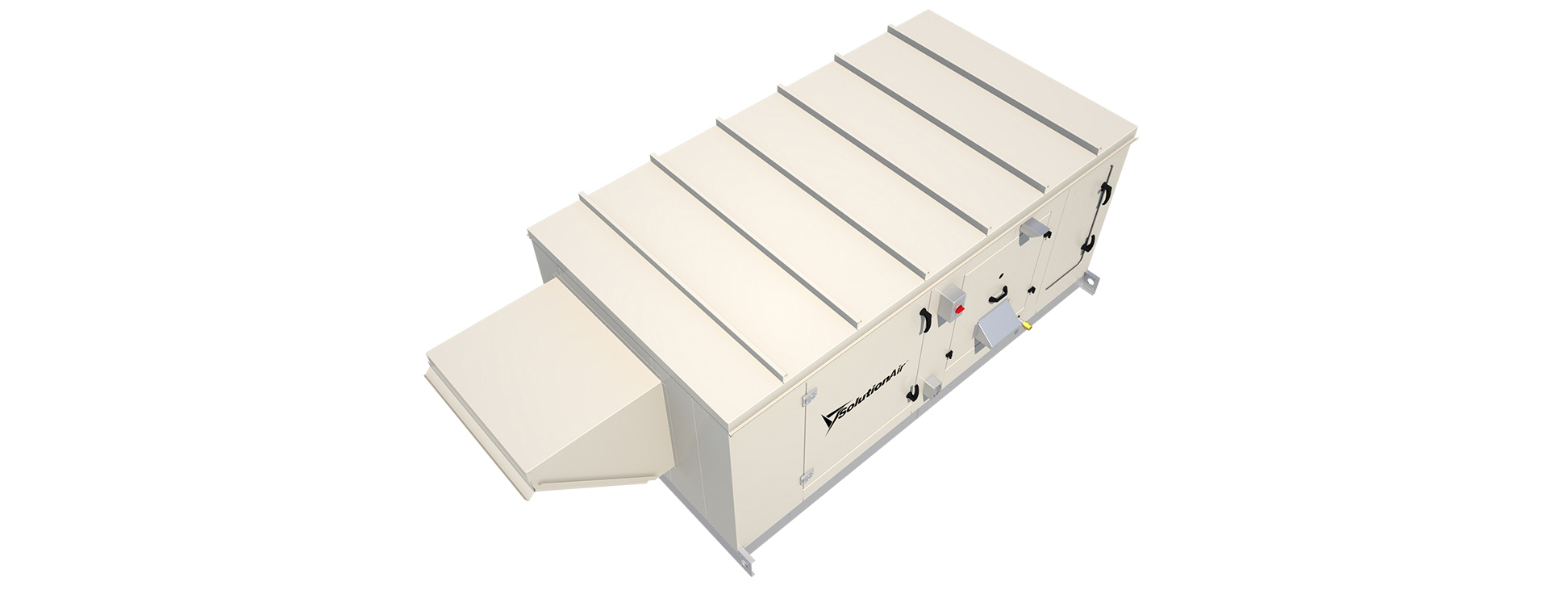

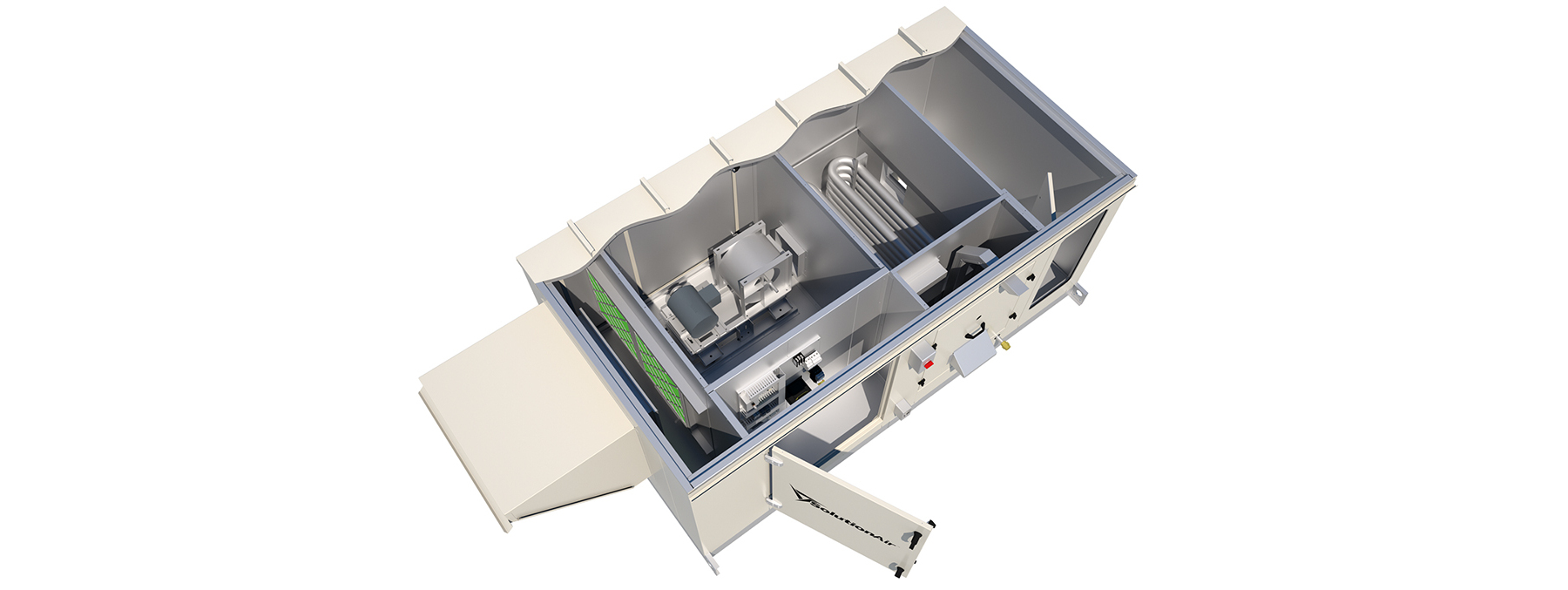

The IFC series are indirect gas fired make-up air units that utilize high-efficiency stainless steel convoluted tube heat exchangers. By separating combustion air from the supply air, the unit is able to maintain excellent indoor air quality (IAQ). These units can be used in schools, offices, and institutional projects – anywhere that IAQ is paramount. The convoluted tube furnace for gas heat is one of the most cost effective indirect fired designs.

FEATURES:

  • Double wall construction
  • 1″ or 2″ polyurethane foam or fiberglass insulation
  • IFC Models:
    • IFC: Standard 80% Efficiency Convoluted Tube
    • IFC-H: 90% Efficiency Convoluted Tube
  • Performance:
    • IFC:
      • 60 – 1200 MBH
      • Design airflow range 505 – 44,444 CFM
      • From 4:1 to 18:1 turndown
    • IFC-H:
      • 160 – 1440 MBH
      • Design airflow range 1,136 – 29,630 CFM
      • From 5:1 to 20:1 turndown
  • Options:
    • Integrated DX cooling
    • Dehumidification/humidification
    • Filtration
    • Mixing boxes to utilize return air
  • Filters:
    • 2″ MERV 8, 11 or 13
    • 12″ MERV 13, 14, 15, or 16
